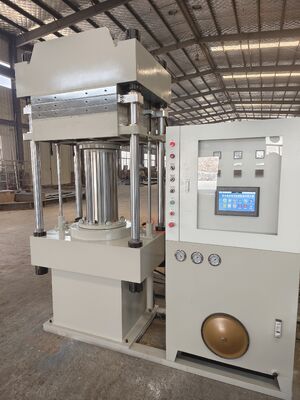

600×600mm Hot Plate 100ton Clamping Force Rubber Vulcanizing Press Machine With PLC Control System For Making Rubber Blocks

600×600mm Hot Plate 100ton Clamping Force Rubber Vulcanizing Press Machine With PLC Control System For Making Rubber Blocks

ব্র্যান্ড নাম: Beishun
মডেল নম্বর: XLB-600×600/1.0MN
MOQ: 1 সেট
মূল্য: আলোচনাযোগ্য
অর্থ প্রদানের শর্তাবলী: এল/সি, টি/টি
সরবরাহ ক্ষমতা: 50set/মাস
বিস্তারিত তথ্য
উৎপত্তি স্থল:
কিংডাও
সাক্ষ্যদান:
ISO9001/CE
কাঠামোর উপাদান:
উচ্চ শক্তি ইস্পাত
পাওয়ার সাপ্লাই:
380V/50Hz বা কাস্টমাইজযোগ্য
হিটিং সিস্টেম:
তেল বা বাষ্প বা বৈদ্যুতিক
পিস্টন স্ট্রোক:
240 মিমি
নিয়ন্ত্রণ ব্যবস্থা:
পিএলসি
হিটিং মোড:
বৈদ্যুতিক
ছাঁচ খোলা টাইপ:
2RT/3RT/4RT
চরিত্র:
ধাক্কা-টান ছাঁচ সঙ্গে
এইচএস কোড:
8477.8000
কাজ স্তর:
কাস্টমাইজড
কাজের স্তর নং:
1
সর্বোচ্চ চাপ:
10-50 এমপিএ
প্যাকিং:
এফসিএল/এলসিএল
মোটর শক্তি:
7.5 কিলোওয়াট
কাজের স্তর:
কাস্টমাইজড
প্যাকেজিং বিবরণ:
কাঠের বাক্স
পণ্যের বর্ণনা

For the production of rubber blocks, the flat vulcanizing machine with a 600*600mm hot plate size, the mainstream models and core parameters are as follows (suitable for small and medium-sized rubber blocks, buffer blocks, and shock absorbers):

I. Standard Model and Tonnage (Commonly Used)

  • XLB-D 600*600 / 1.00MN (100 tons)
    • Molding Force: 100 tons (Suitable for most rubber blocks, mold cavity pressure is approximately 2.8 MPa)
    • Hot Plate Dimensions: 600 * 600 mm
    • Number of Hot Plate Layers: 2 layers (three plates with two layers) or 4 layers
    • Plunger Stroke: 300–400 mm
    • Hot Plate Spacing: 125–200 mm (Adjustable)
    • Heating: Electric heating, power per layer is approximately 3.0–4.5 kW
    • Temperature: Room temperature to 200–250℃
    • Temperature Control Accuracy: ±1~2℃
    • Structure: Four-column type (Most commonly used)
  • XLB-D 600*600 / 1.60MN–2.00MN (160–200 tons)
    • Suitable for large-sized, high-density, thick rubber blocks, or multi-cavity high-capacity molds
    • Greater clamping force, denser pressing, avoiding glue shortage and bubbles

II. Recommended Configuration for Rubber Blocks

  • Number of Layers: Prefer 2 layers (standard) or 4 layers (efficient)
    • 4-layer machine: Can place 4 sets of molds at once, production capacity doubles
  • Pressure:
    • Common rubber blocks (NR/SBR/EPDM): 100 tons is sufficient
    • High hardness, thick products, fluorine rubber blocks: Recommended 160–200 tons
  • Heating Method: Electric heating (Precise temperature control, simple installation, low maintenance)
  • Control:
    • Semi-automatic: Manual + automatic timing, exhaust, holding pressure, mold opening
    • Fully automatic (recommended): PLC + touch screen, automatic cycle, formula storage
  • Additional Functions:
    • Automatic exhaust (3–5 times): Reduces rubber block bubbles
    • Automatic ejection: Convenient for taking parts, improves efficiency
    • Fast and Slow Hydraulic Cylinders: Fast mold closure, slow pressure increase, protects molds

III. How Large Rubber Blocks Can Be Made with 600*600?

  • Single rubber block: ≤500*500mm (leave 50mm on each side for mold placement / exhaust)
  • Multi-cavity in one mold: For example, 100*100mm block → One mold can hold 36 blocks (6*6)
  • Height: ≤120–150mm (based on layer spacing of 125–200mm)

IV. Price Reference (2026)

  • 100 tons 600*600 Semi-automatic: $5,000 - $8,000
  • 100 tons 600*600 Fully automatic (PLC): $6,000 - $9,000
  • 160–200 tons 600*600: $9 - $150,000 (depending on configuration)

V. Selection Points (For Rubber Blocks)

  • According to mold size: Hot plate is 50mm larger than each side of the mold +
  • According to product thickness: Layer spacing > product thickness by 30% +
  • According to hardness / material: High hardness, thick wall → Tonnage is increased by 1.2–1.5 times
