| ব্র্যান্ড নাম: | BeiShun |
| মডেল নম্বর: | XBL-500*500/2MN |
| MOQ: | 1 set |
| মূল্য: | আলোচনাযোগ্য |
| প্যাকেজিংয়ের বিবরণ: | Wooden box /Container |
| অর্থ প্রদানের শর্তাবলী: | L/C, T/T, Western Union |

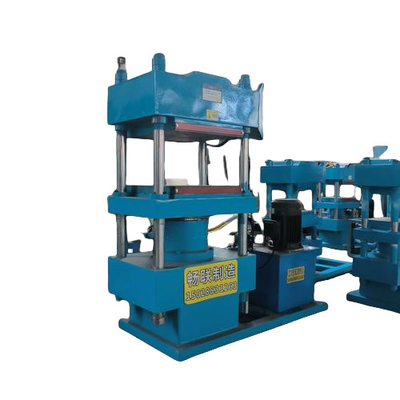

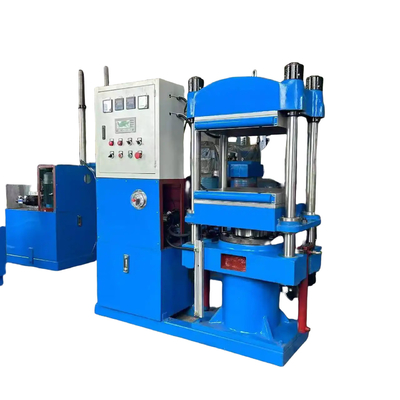

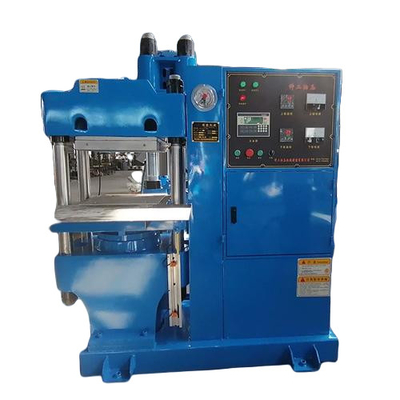

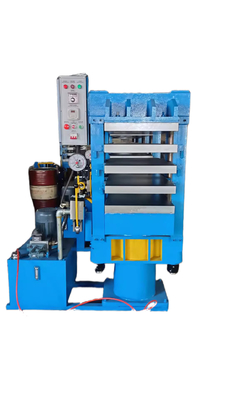

PLC Control System Rubber Plate Vulcanizing Machine Is Used To Produce Rubber Auto Parts/Rubber Seals/Rubber Plugs
Rubber Plate Vulcanizing Press Use:
Rubber and plastic flat vulcanizing machine is suitable for pressing various molded products, such as rubber and plastic, and also suitable for thin sheet products.
Performance characteristics: The main machine is a four-column integral structure, and the pressing type is upward pressing type, which is divided into three parts: main machine, oil tank and electric control box. Electric heating is controlled by three-way automatic temperature controller, which can be adjusted arbitrarily within the range of 20-200 degrees. When the temperature is reached, the circuit can automatically maintain constant temperature, and automatically alarm after reaching the set vulcanization time.
Technical Parameters
| Number | Item | Parameter |
|---|---|---|
| 1 | Nominal Clamping Force | 0.25 MN |
| 2 | Flat Plate Area | 350×350 mm |
| 3 | Hot Plate Spacing | 150 mm |
| 4 | Number of Working Layers | 2 layers (can be increased as required) |
| 5 | Maximum Hydraulic Pressure | 14.5 MPa |
| 6 | Maximum Plunger Stroke | 250 mm |
| 7 | Heating Power | 7.2 KW |
| 8 | Motor Power | 2.2 KW |
| 9 | Overall Dimensions | 1250×550×1420 mm |
| 10 | Weight | 1.1 T |
The rubber plate vulcanizer is a key equipment in the production of rubber products. It mainly uses heating and pressurization to make the rubber material undergo a vulcanization reaction, thereby forming a product with specific properties. The following are its common application areas and the types of products that can be produced:
I. Industrial rubber products
1. Seals
Various types of rubber seals (such as O-rings, Y-rings, lip seals), gaskets, flange gaskets, etc., are used for leak-proof sealing in machinery, automobiles, pipelines and other fields.
2. Shock absorbers
Rubber shock absorbers, shock absorbers, buffer blocks, vibration isolators, etc., are used in automobiles, mechanical equipment, construction and other fields to reduce vibration and impact.
3. Industrial rubber sheets/strips
Oil-resistant rubber sheets, acid-resistant and alkali-resistant rubber sheets, anti-slip rubber sheets, etc., are used for work surfaces, floor laying or equipment protection; rubber strips (such as door and window seals, cabinet seals) are used for sealing and sound insulation.
4. Conveyor belts/rubber rollers
Light conveyor belts and rubber rollers (used in printing and packaging machinery) are wear-resistant and corrosion-resistant.
|
|
